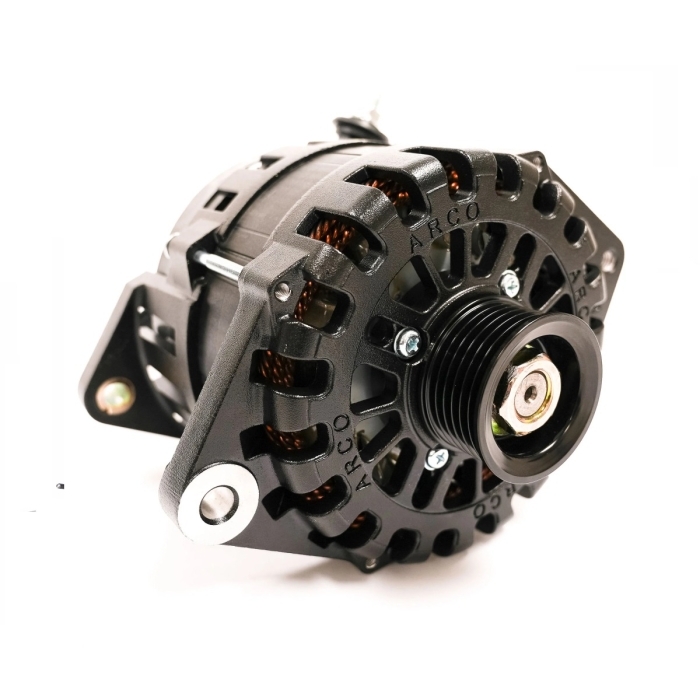

Zeus A225s 3.15 Alternator with Isolated Ground Terminal Block | Arco 4011
Special Price
$798.00
Regular Price
$1,104.75
SKU
Brand: Arco MarineQty In Stock: 0
ARCO-4011
ARCO Zeus 12 volt/225 amp high output alternator with 3.15 inch saddle mount. Requires an external regular, like the ARCO Zeus Bluetooth battery regulator. Includes a 49mm K6 pulley.
Zeus A225s 3.15 Alternator with Isolated Ground Terminal Block | Arco 4011 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |
- High-Efficiency Power Generation – Designed for maximum energy output across marine, RV, military, and commercial applications.
- Fast Battery Charging – Rapidly replenishes large battery banks.
- Cooler Operation for Enhanced Performance – Runs 8-20% cooler than standard alternators with:
- Heat-shedding coatings
- External rectifier placement
- Dual cooling fans
- OEM-grade components
- Optimized for Idle Performance – Delivers reliable power even at low RPMs.
- Generator Alternative – Generates additional power through your engine, reducing the need for a separate generator.
- Advanced E-Coat/Cerakote Finish – Minimizes heat absorption, keeping the A225S cooler for sustained amperage output.
- Pair with ARCO Zeus Bluetooth Alternator Regulator – Maximizes performance and supports lithium battery charging.
- Certified & Made in the USA – SAE J1171 Certified.
- Voltage: 12 volts
- Field Type: P
- Rotor Poles: 16
- Stator Size: 130 mm
- Frame Size: Small
- Weight: 12 pounds (5.4 kg)
- Regulation: Internal/External (Internally regulated with adapter for external regulation)
- Output Voltage: 14.1 volts (Default)
- Finish: Black Cerakote or E-coating
- Cut-In RPM: 1,061 Alternator RPM
- Max Alternator RPM: 19,000
- Battery Post: M8 Thread Post, Side Mount
- Standard Pulley: 49K6 (6-groove, 49 mm)
- Pulley Mount: 17 mm diameter shaft, 25 mm length, M17 x 1.5 threading
- Pulley Hardware: M17 x 1.5 x 24 mm nut, w/ 18 mm ID x 29 mm OD washer (Included)
- Diodes: 6 positive, 6 negative, 50 amp rated, avalanche
- Max Output (Cold, 9,000 RPM): 254 amps
- Sustained Cruising Output (Hot, 6,000 RPM): 187 amps
- Sustained Idle Output (Hot, 3,000 RPM): 157 amps
- Max Continuous Operating Temperature: 110°C / 230°F
