Single Circuit On-Off Battery Switch with AFD
Special Price
$56.99
Regular Price
$75.76
SKU
Brand: Blue Sea SystemsQty In Stock: 0
BLUE-9004E
Blue Sea 9004E E-Series Red Single Circuit On-Off Battery Switch with AFD
Single Circuit On-Off Battery Switch with AFD is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |

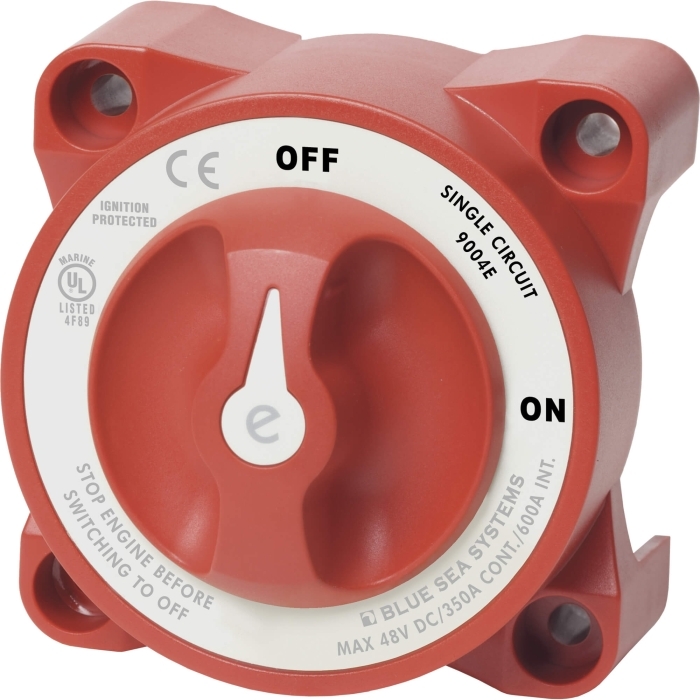

- E-Series Red Single Circuit On-Off Battery Switch with AFD
- With Alternator Field Disconnect
- Red Single Circuit
- Switches a single battery to a single load group
- Ignition protected?safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Cranking rating: 10 sec. 2 000A
- Cranking rating: 1 min. 1 000A
- Intermittent rating: 5 min. 600A
- Continuous rating: 350A
- Maximum voltage rating: 48 volts DC
- Terminal stud size 3/8 in.-16 (M10)
- Terminal stud torque 140 in.-lbs. (15.82 N?m) max.
- Mounting holes accept 1/4 in. (M6) screw
- Cable size to meet ratings 4/0 AWG (95mm?)
- Cable clearance for 4/0 AWG cables 1.10 in. (27.9mm)
- Weight Lbs. (Kg) 0.95 (0.43)
